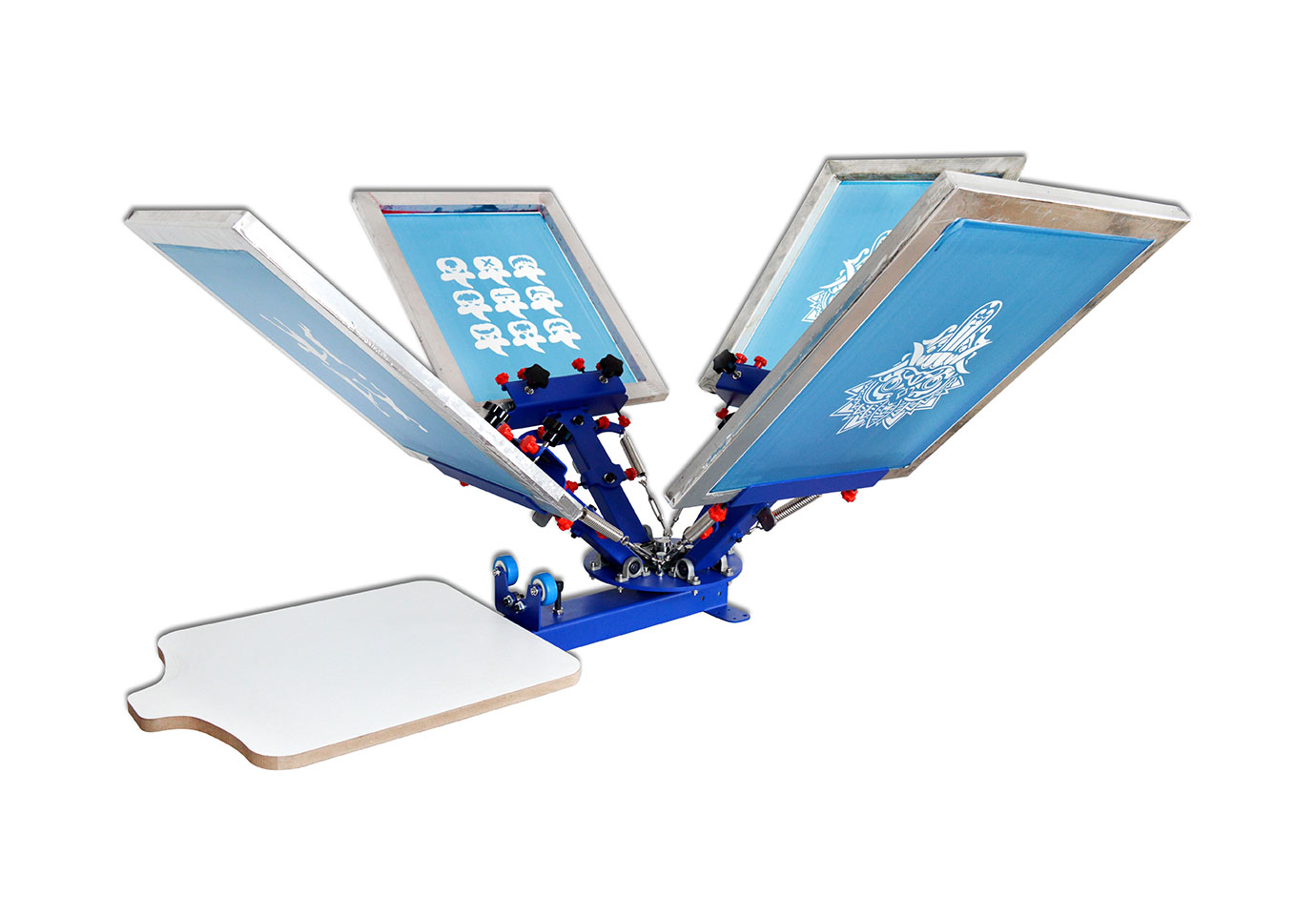

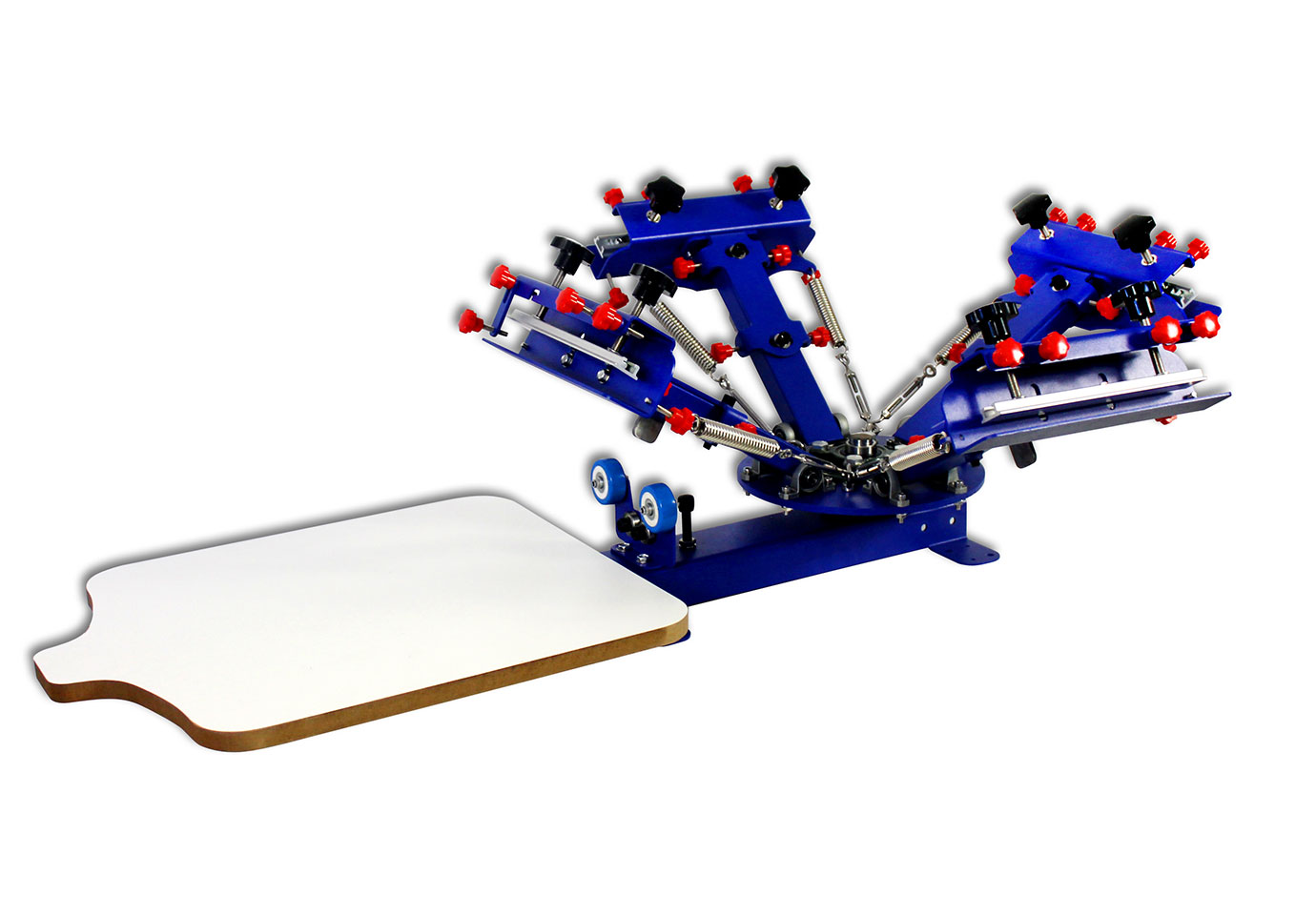

MK-T411C desktop micro-adjust 4 color 1 station overprinting screen printing machine

It is mainly used for the four color T-shirt overprinting,it is configured with one t-shirt pallet station.The machine should be fixed on the table.This machine has micro-adjust knobs to move screen plate to position the color for overprinting.

Product Information

Product Features

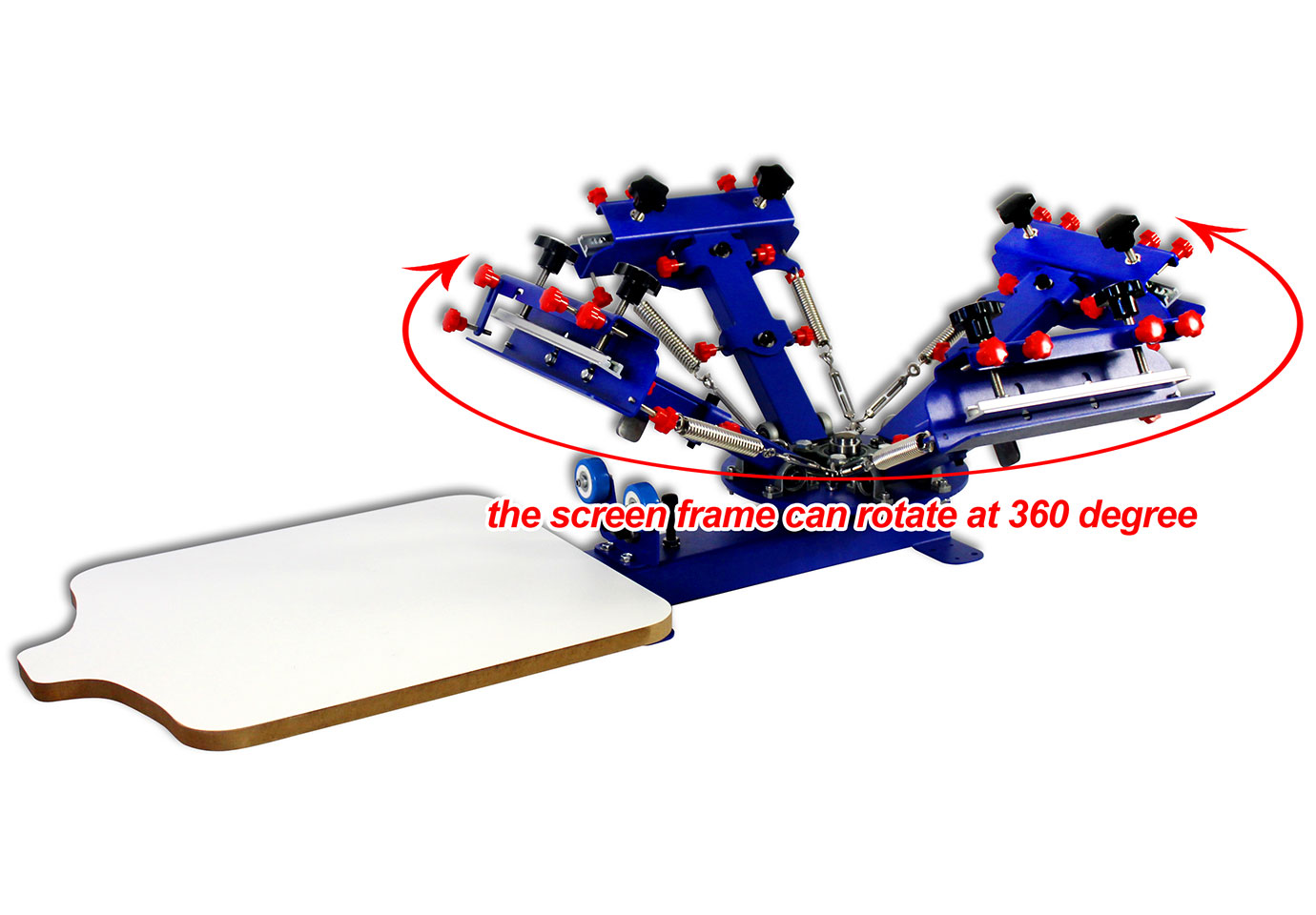

1.The chuck of the screen frame can rotate at 360 degree.

2.Each screen frame fixing device is configured with 8 micro-adjust knobs,they can micro adjust the screenframe from left to right , from front to back, and it can make the overprinting be simpler and more accurate.

3.Each screen frame’s fixing device is equipped wth precise positioning wheel,when the positioning iron on the arm placed in positioning wheel closely, it can ensure the printing precision.

4. Each screen frame’s fixing device is equipped wth adjustable height chuck positioning knobs and adjustable height knobs when lift up the acreen frame.

5. According to the weight of the screen frame, spring tension can be adjusted by the basket screws to achieve balance.

6. Screen frame chuck’s width is (11in) 29 cm ; It is suitable for screen frame with outside size within (24 in) 60 cm and screen frame with thickness size is within 4 cm (1.6 in).

7. Screen frame chuck can be adjusted up to 5 cm (2 in)according to the height of substrates.

8. Screen frame chuck knob fix the screen frame together with the special aluminum alloy plate, and it can be fit closely and be more stable.

9. The pallet is connected with the pallet arm by braket, it can move around 10cm (4 in) from front to back.

10. T-shirt type pallet of the machine is 55 cm (22 in) long, 45 cm(18in) wide, the thickness is 1.8 cm (0.7 in); Using furniture surface melamine high density board, the surface with small pits, and it is more suitable for printing T-shirt when scraping the pallet glue.

11. The machine adopts advanced electrostatic spraying process, various parts using stainless steel,aluminum alloy,nickel and zinc plating technology. They are corrosion resistance, no fading, easy to clean, maintain color and finish for a long time, and it can use for a long time with no rust.

Product Parts

All machines are configured with a full set of tools to install the machine; There is no need to prepare for other tools to complete the installation; Equipped with installation diagram and the packing list,parts installation location is very clear; All machines are configured with installation CD and operation video, it is more convenient for the user to install and use the machine .There are still spare parts in the box for users to change.
