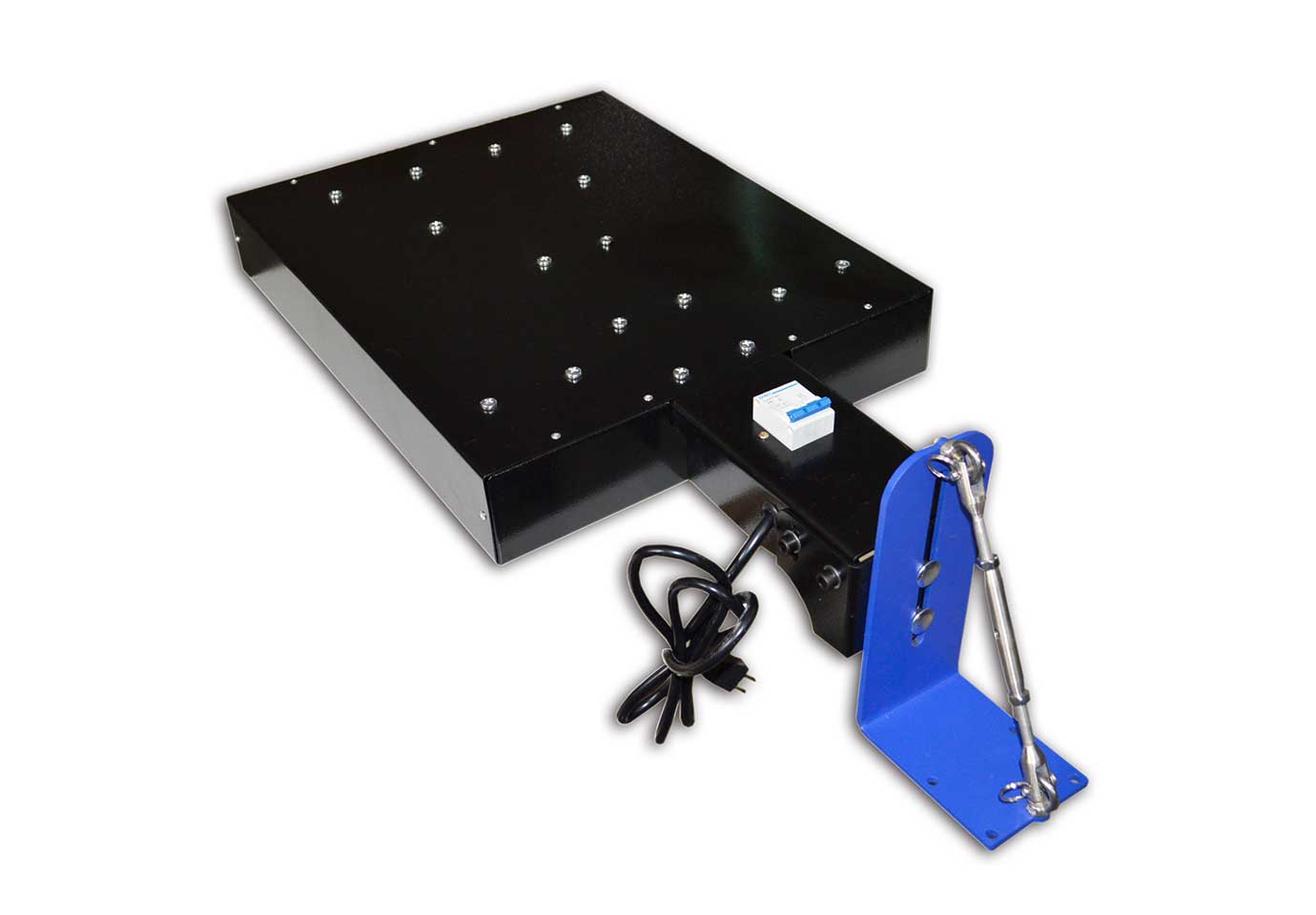

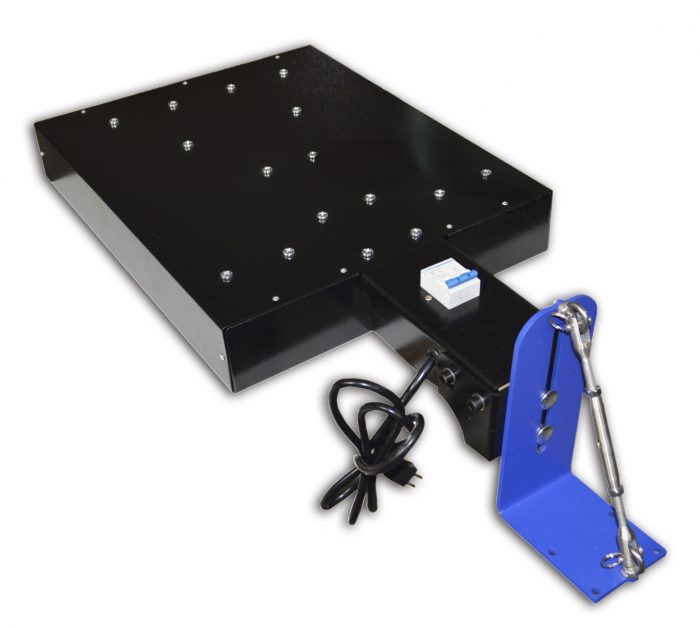

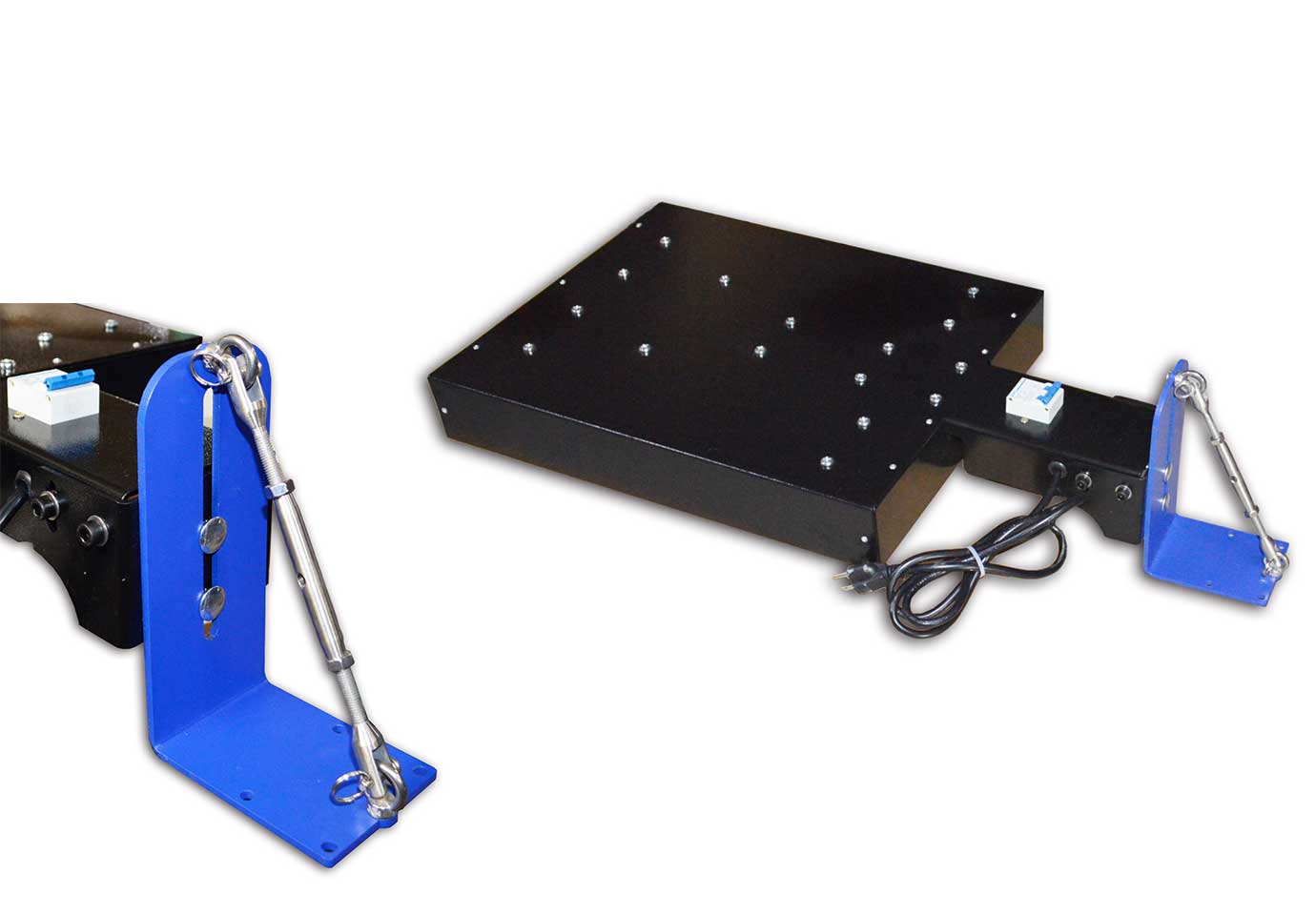

MK-MC-1600W multi-color screen printing machine universal dryer

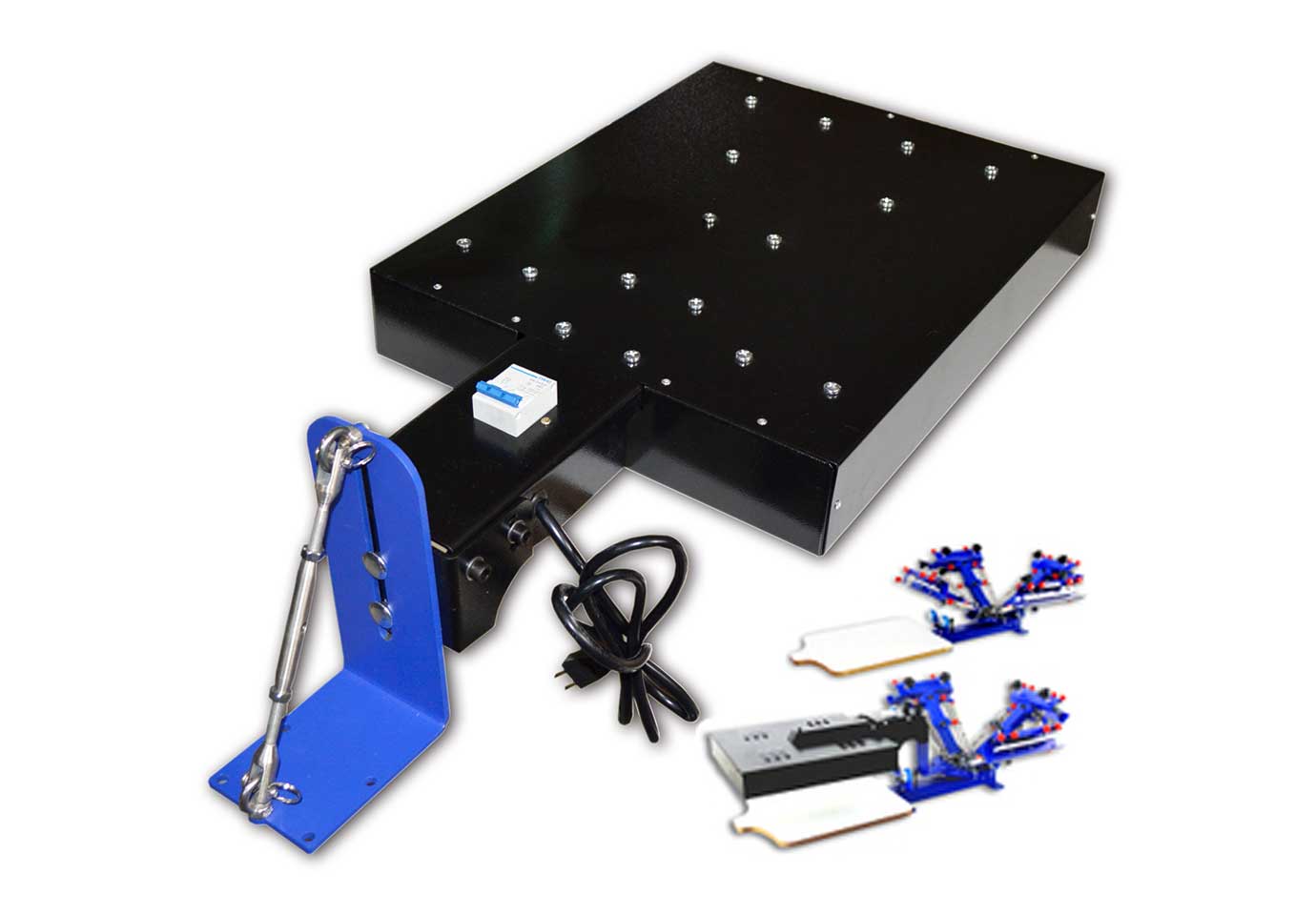

The machine can directly installed on our multi-color screen printing machines ;Just remove the screen frame chuck ,then install the dryer .

The product has a better price:
  • We are a factory that produces screen printing mesh. The more you buy, the cheaper your price.

Description

The machine can directly installed on our multi-color screen printing machines ;Just remove the screen frame chuck ,then install the dryer .

After installation of the dryer ,it is a whole repeatedly together with the multicolor printing machine, in the process of printing, after printing a color, directly rotate the dryer  to the substrate for a few seconds, when the surface of the substrate is non-stick ,move the dryer to the second color printing; Printing efficiency will greatly improved , greatly reduce work intensity.

Product Code 006298 (110V)  006299 (220V)
Product Name MK-MC-1600W multi-color screen printing machine universal dryer
HS code 8419399090
Product Color Black
Size of Drying Box 16*16inch
Heating tube material Stainless Steel Heating Tubes
Voltage 220v/110v
Power 1600w
Plug American standard,National standard,European standard
Machine using material steel plate
Machine surface treatment Electrostatic spraying
Attachment material Stainless steel or zinc plating, nickel plating
Net weight 31lb
Gross weight 33lb
Packing size 31*19*8in
Packing volume 0.08 m³
Packing material Export fumigation

The functions and features of this machine:

1, The heating tubes adopts 1600w stainless steel heating tubes ,high heating efficiency,it can normally be used for about 10000 hours

2, The size of drying box is 40*40cm;

3, The temperature can be achieved by adjusting the height of the drying box.

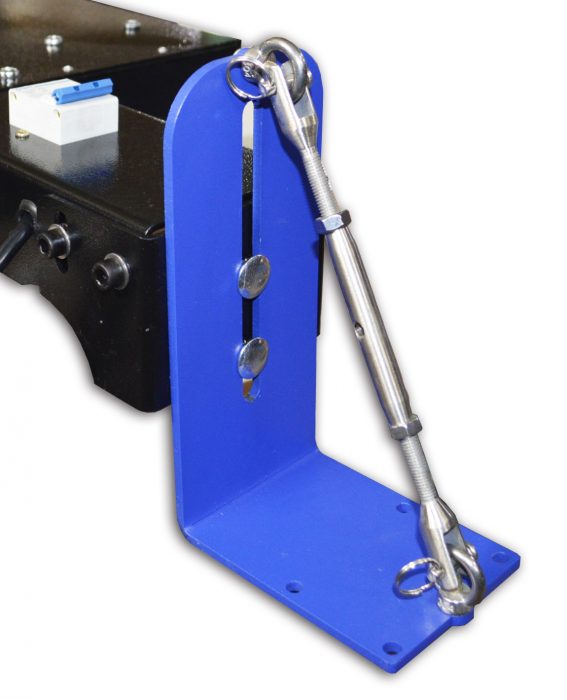

4, The drying box can move 10cm from top to bottom.

5, The back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.

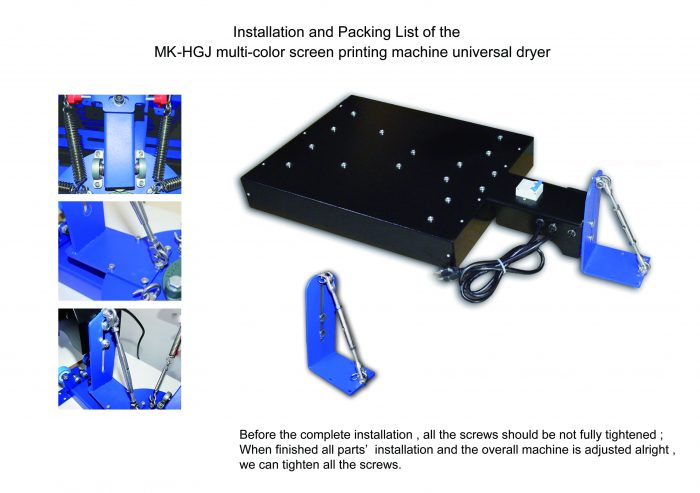

6, Prepare for the full set installation tools, test thermometer and installation instructions.



How to use:

  1. Move the dryer heating box to the top of the drying platform, turn on the power, start the heating.

2, Place the thermometer probe in the middle of the platform to start temperature measurement;

3.Observe the temperature showed in the thermometer after 15 minutes ;

If the temperature is too high; Adjust the height of the drying box ,if the temperature is too low ,shorten the height of the dryinig box with the platform to achieve the proper temperature .

Test reference data:( following data is just for reference )

Use condition:

Room temperature 24 C(75 F); Work environment without circulation wind;

Bottom of the drying box is 3 cm distant from platform , the temperature is 180c (374 F)

Bottom of the drying box is 5 cm distant from platform , the temperature is 170 c (356F)

Bottom of the drying box is 7 cm distant from platform , the temperature is 160 c (320F)
