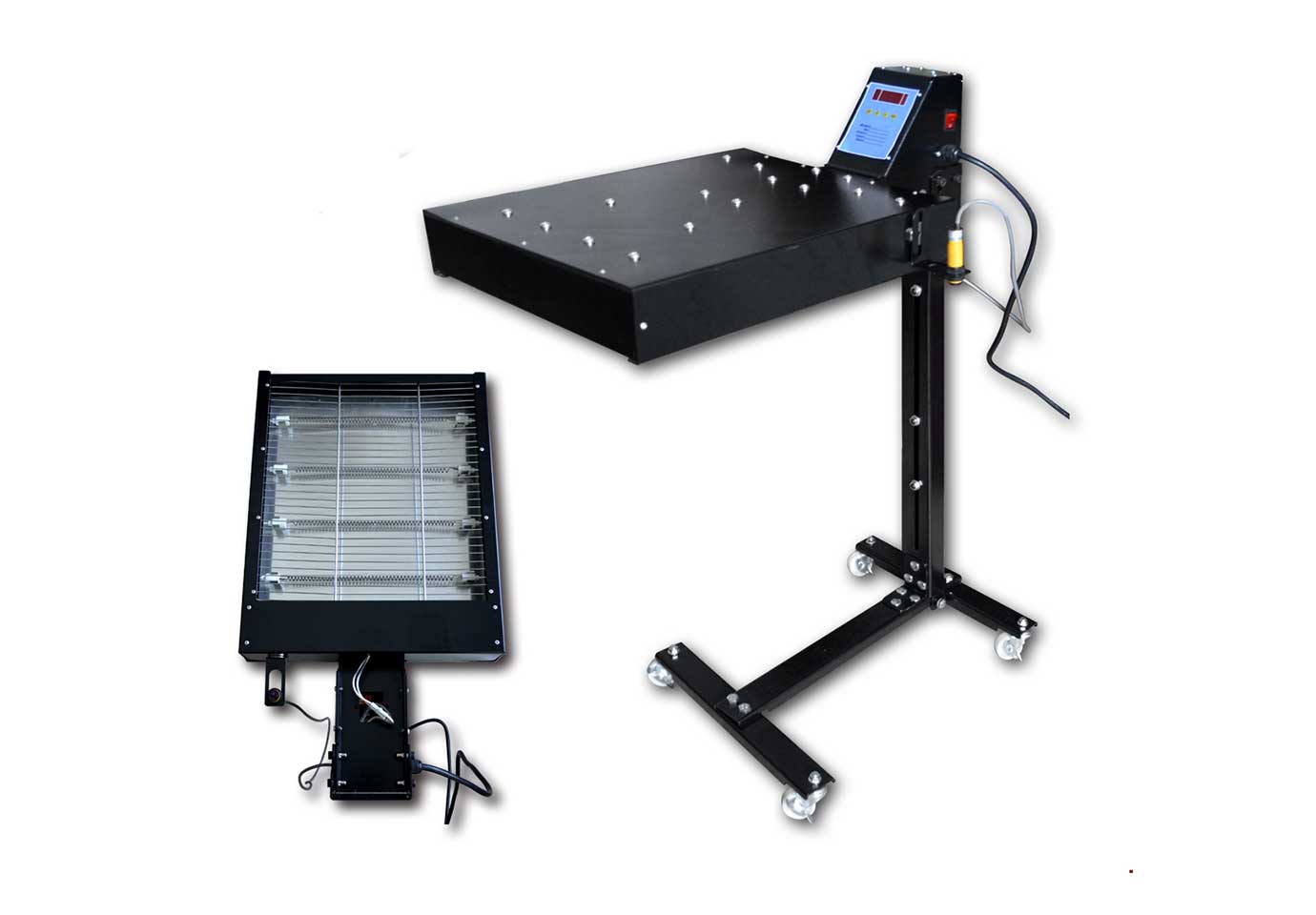

MK-FUCF40401-110V-1600W Photoelectric control universal carbon fiber dryer

The machine is mainly supporting multi-color rotary screen printing machine in the process of printing on products .It is conducted by flash drying, improve the efficiency of the printing.

The functions and features of this machine:

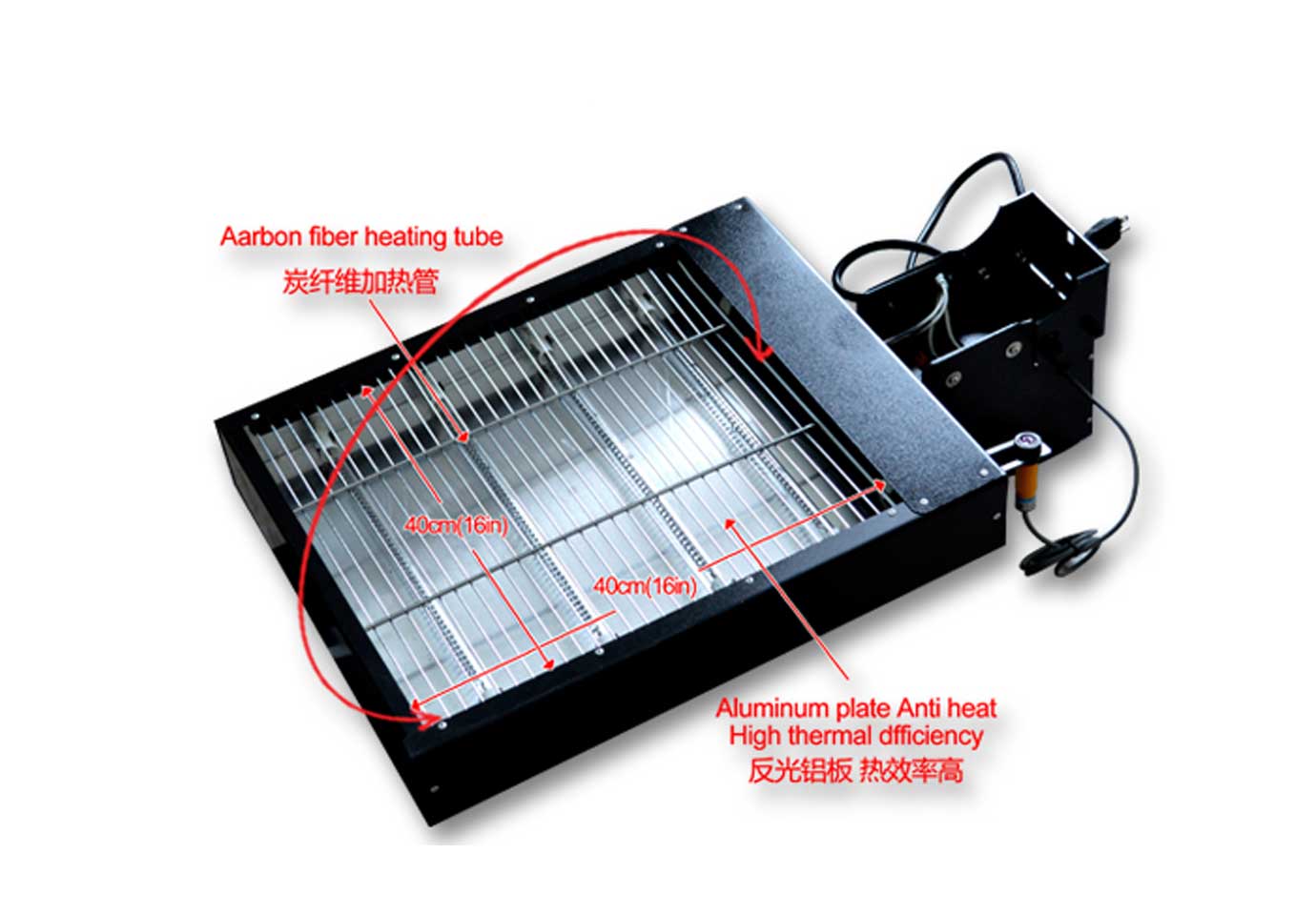

1,The heating tubes adopts 1600w stainless steel heating tubes ,high heating efficiency,it can normally be used for about 10000 hours

2, The size of drying box is 40*40cm;

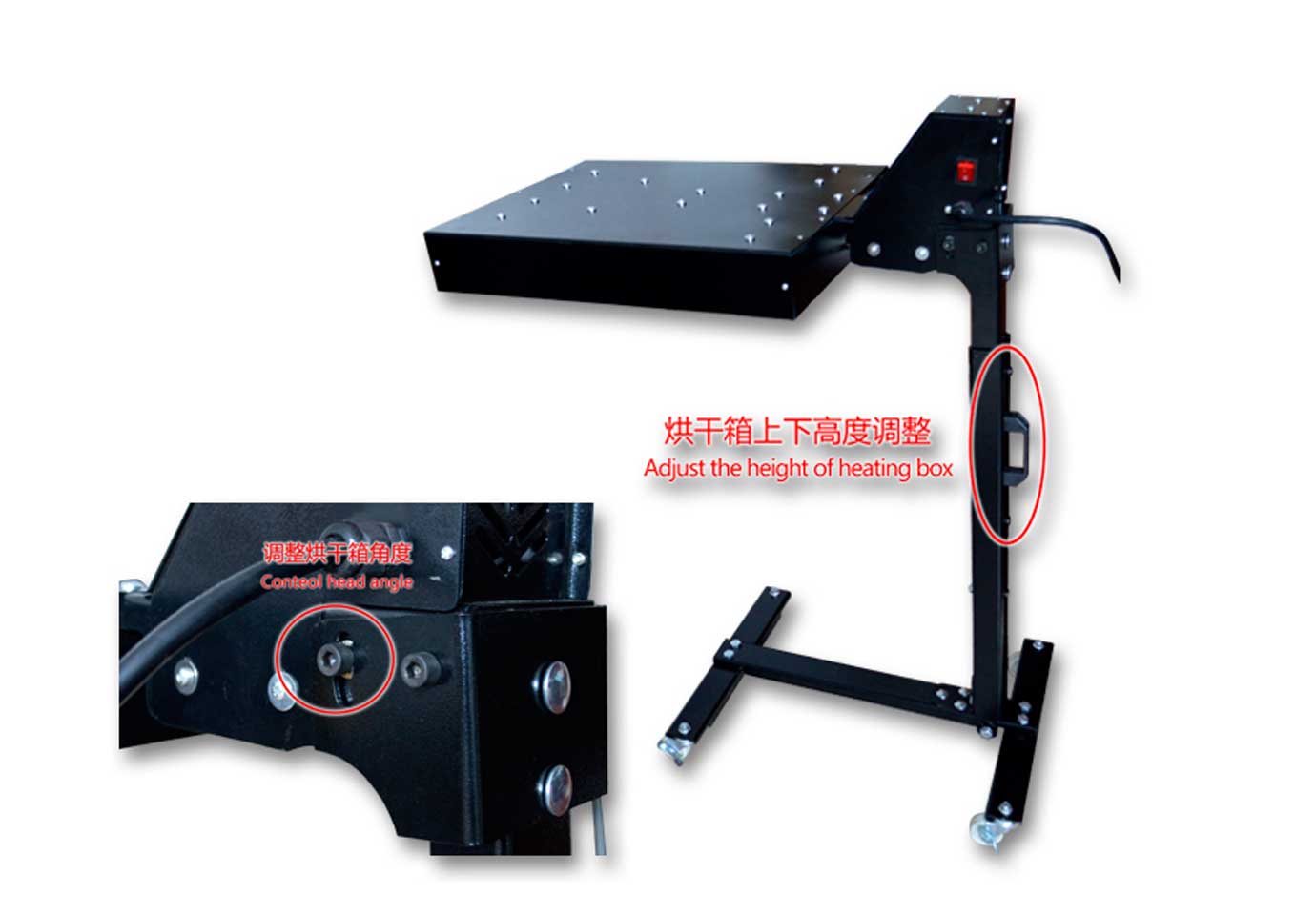

3, The temperature can be achieved by adjusting the height of the drying box.

4, The drying box can move 37cm from top to bottom.

5, The bottom of the dryer is 68cm distant from the ground, the highest can be adjust to 100cm.

6, The back of the heating pipe is hot aluminum plate, its thermal efficiency is higher.

7, The bottom is equipped with casters , it can move arbitrary.

8, Prepare for the full set installation tools, test thermometer and installation instructions.

How to use:

1，Move the dryer heating box to the top of the drying platform, turn on the power, start the heating.

2，Place the thermometer probe in the middle of the platform to start temperature measurement;

3,Observe the temperature showed in the thermometer after 15 minutes ; If the temperature is too high; Adjust the height of the drying box ,if the temperature is too low ,shorten the height of the dryinig box with the platform to achieve the proper temperature .

Auxiliary function: Support with rotary dryer in the process of printing surface drying

Use condition:

Test reference data:( following data is just for reference )

Room temperature 24 C(75 F); Work environment without circulation wind;

Bottom of the drying box is 3 cm distant from platform , the temperature is 180c (374 F)

Bottom of the drying box is 5 cm distant from platform , the temperature is 170 c (356F)

Bottom of the drying box is 7 cm distant from platform , the temperature is 160 c (320F)
